SE-02 Unofficial Editor
by Voidcontrol MIDI
$15
I run a hybrid setup with both hardware and software. The SE-02 was my first analog hardware synth, and remains a favorite. But integrating it into a DAW session was always clunky. The official editor, last updated years ago, has compatibility issues on my system. So I designed a new editor for myself that I hope others may also enjoy using.
MAC USERS: Latest version v1.2.2 now requires macOS 12.
What it does:

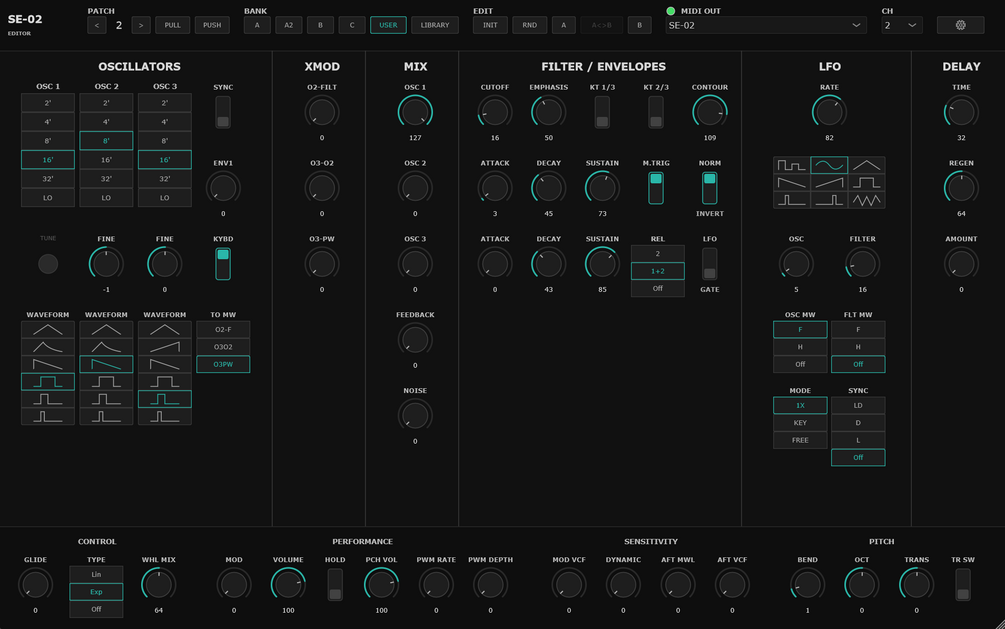

All 63 CC parameters on screen: Organized by section like the hardware.
Full DAW automation: Draw filter sweeps, automate LFO rates, record knob moves. Real automation lanes, not just MIDI learn.

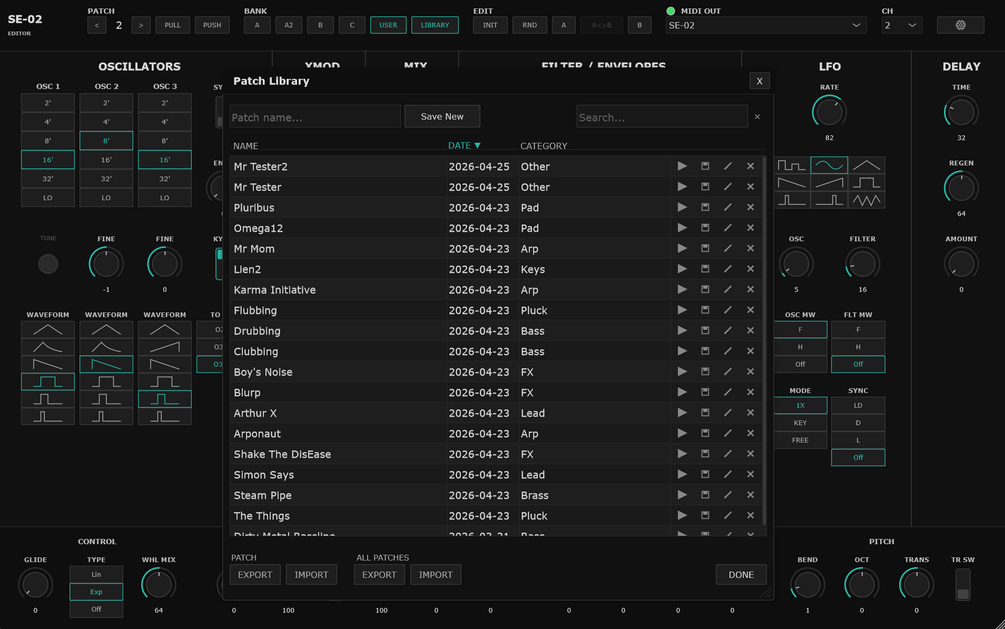

Patch library: Save your sounds, name them, search and filter, export and share. Your patches live on your machine.
PULL from hardware: Reads the current patch from the SE-02 over SysEx so the editor matches what's on the synth.
PUSH to hardware: Sends everything in the editor to the SE-02 in one shot.
A/B snapshots: Save two states and morph between them with a slider.
Init & Randomize: A clean starting point, and a weighted randomizer that stays musical.
Resizable UI: 50% to 300%.
What's New in v1.2.2 (a free update for all owners)
An update focused on the Patch Library and the Bank Builder.
macOS 12 Monterey or later is now required. If you’re on macOS 11 Big Sur, keep using 1.2.1.
Bank Builder slots hold their patches. Each slot keeps the patch exactly as you added it, so you can keep sorting and editing the Library while building a bank.
Safer bank replacement. When you replace a hardware bank, the old one stays in place until the new one is complete, and bank names are checked to keep exports in the right folder.
Restores replace only the slots you filled. “Fill empty slots with INIT” now starts unchecked, so restoring a short bank leaves the rest of your SE-02’s patches untouched. Check it if you want a full 128-slot bank.
Clear messages for files. If the Library, an export, or a backup can’t be read or saved, the editor tells you and shows where the file is.
Room for big libraries. Libraries of more than 5,000 patches keep every patch. When the Library is full, the editor lets you know how to make room.
macOS: messages stay in front of the Library window, including the Delete confirmation.
What it won't do (the limitations)
Roland never published a full SysEx spec for the SE-02, so some parameters can't be read back over MIDI. PULL captures all oscillator, filter, envelope, LFO, and effect settings; a few performance and global parameters stay at whatever you last set in the editor. PUSH sends every parameter the SE-02 accepts over MIDI.
Patches you dial in are saved as CC snapshots, accurate to what you set rather than a copy of the hardware's internal state. Patches you import from a hardware bank keep their original file values.
Bulk preset transfer isn't available over MIDI, so it works a different way: Hardware Banks read and write the SE-02's own .PRM bank files while the synth is in USB restore mode.
Requirements
Windows 10/11, or macOS 12 or later (Apple Silicon). Ships as VST3 and standalone on Windows; as Audio Unit, VST3, and standalone on Mac. Signed and notarized.
A compatible DAW for the plugin, or run the included standalone app with no DAW needed. Tested on Logic Pro, Ableton Live 12, Bitwig 6, Studio One 7, Reaper 7.69, Cubase 15, and Waveform 13.5.
Roland SE-02 connected via USB MIDI (recommended) or DIN MIDI via a MIDI interface.
Internet connection for initial license activation on Gumroad and periodic silent rechecks (every 30 days).
Works on Windows 11 alongside the MIDI 2.0 update.
One license key works on both Windows and macOS. It activates on up to 3 machines total, counted across both platforms combined (not 3 per platform). If you run out of activations after a reinstall or hardware change, email your Gumroad receipt and I will reset the count.
To set up on Windows
In a DAW (plugin)
Copy the .vst3 folder to C:\Program Files\Common Files\VST3\
Add it to a track in your DAW as an Audio FX plugin.
Select your SE-02 MIDI port in the editor header.
Route your MIDI keyboard to the same track so notes reach the SE-02.
Without a DAW (standalone)
Run "SE-02 Unofficial Editor.exe" from the download. No installation needed.
Select your SE-02 MIDI port in the editor header.
Play the SE-02 as you normally would, from a keyboard or controller connected to it. The standalone handles patch editing; it does not need to sit in the note path.
To set up (Mac)
Copy SE-02 Unofficial Editor.component to ~/Library/Audio/Plug-Ins/Components/ for the Audio Unit, or SE-02 Unofficial Editor.vst3 to ~/Library/Audio/Plug-Ins/VST3/ for VST3. The Standalone app runs on its own; drag it to /Applications/ or launch it from wherever you keep it.
Add to a track in your DAW as an Audio FX.
Select your SE-02 MIDI port in the editor header.
Route your MIDI keyboard to the same track so notes reach the SE-02.
Support & Bugs
Sold as-is. If you hit a bug, please use the Bug Report Template included in your download folder and email me at voidcontrolmidi@gmail.com. I'll do my best to patch it.
Not affiliated with Roland or Studio Electronics. "SE-02" is a Roland trademark. This is a third-party tool made by a user, for users.
